Rhombus R600 Multi-Sensor Camera
Four 5MP sensors. One mount. Total coverage.
One Camera. Four Perspectives. 100,000+ sq ft of Coverage.

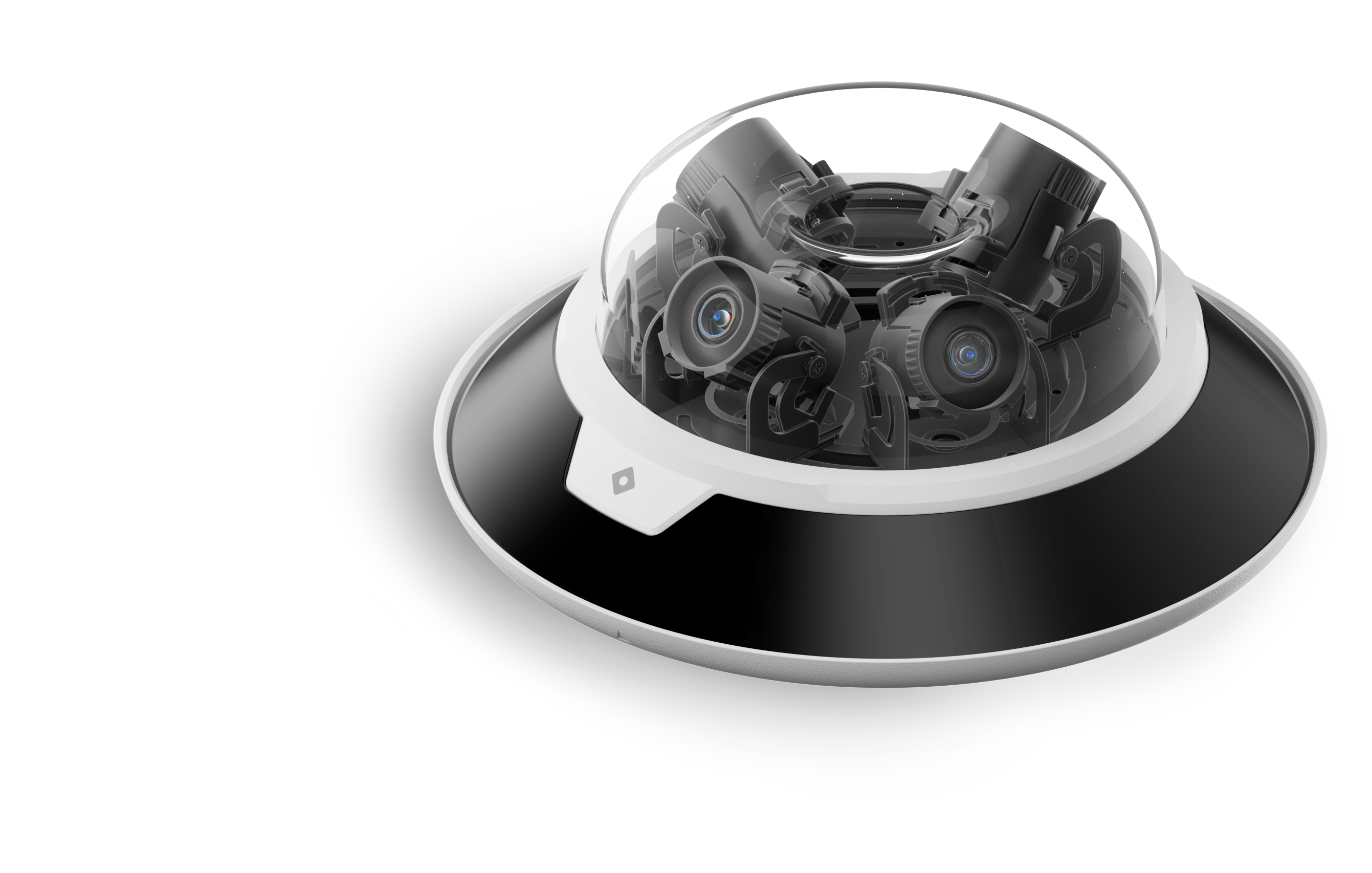

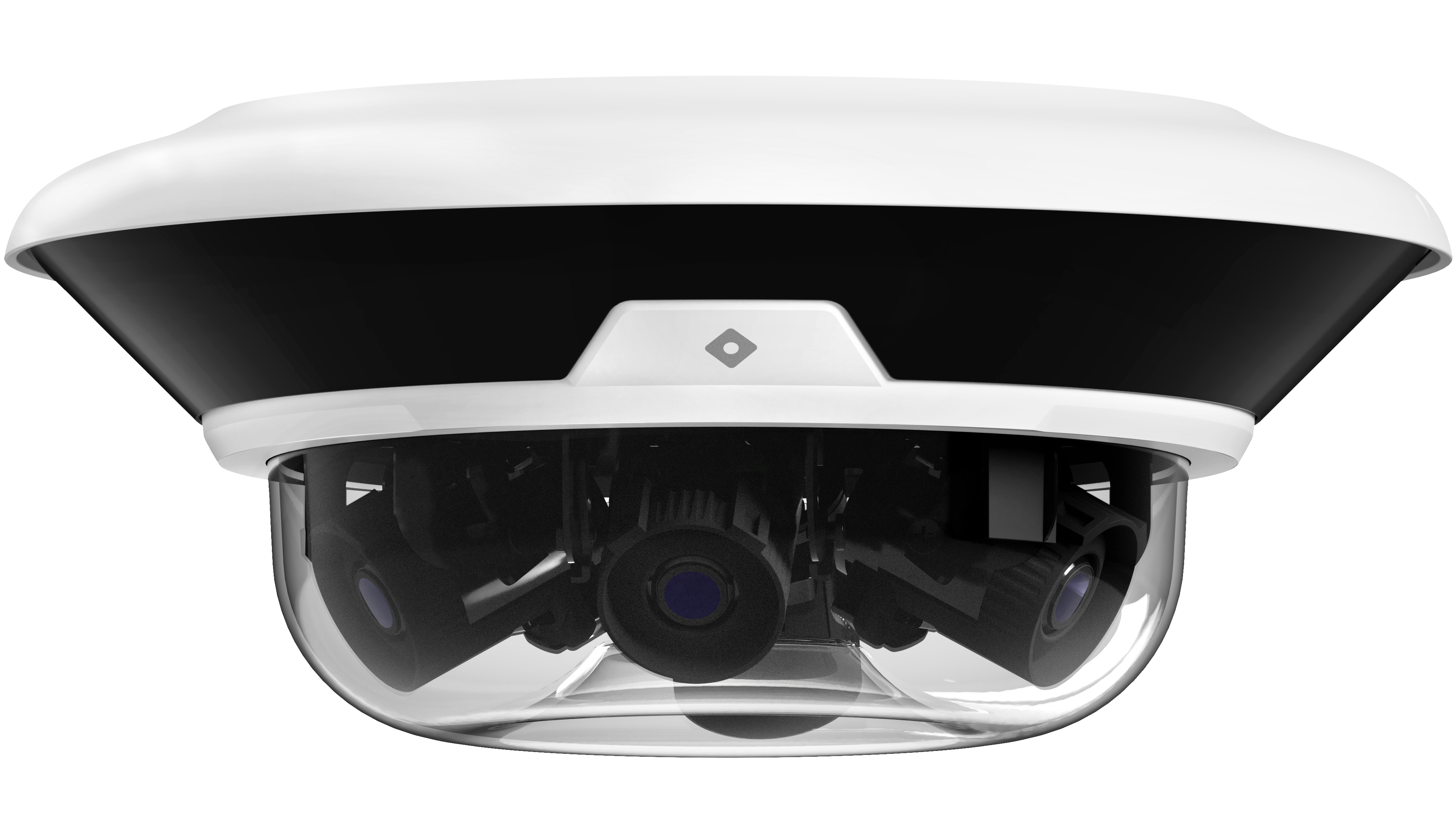

The Rhombus R600 packs four independent 5MP sensors into one compact dome to deliver comprehensive visibility across your most expansive areas. It reduces blind spots and maximizes coverage in large spaces — replacing up to four traditional cameras with a single unit.
Paired with the Rhombus Enterprise Console License, the R600 provides proactive security with advanced AI Analytics that speeds up investigations, accelerates emergency response, and helps you stay one step ahead of threats.
See the R600 in Action
Built for Large Spaces
The R600 is purpose-built for expansive environments where traditional single-sensor cameras create blind spots and require multiple installations.
Why the R600?
AI-Powered Analytics
On-camera AI processes facial recognition, license plate reading, crowd counting, and heat mapping. Paired with the Enterprise Console License for proactive threat detection and faster investigations.
Cloud-Native Platform
No DVR or NVR needed. Up to 2TB onboard storage with 40-90 days retention, plus optional cloud archiving. Access footage from anywhere via web or mobile.
Single Cable Install
One PoE++ (802.3bt) cable powers all four sensors. Fewer cables, fewer penetrations, faster installation. Max 51W power consumption with minimal bandwidth (10-30 Kbps steady state).
Motorized Varifocal Lens
3.42-6.85mm motorized varifocal lens on each sensor with 2x optical zoom and 2x digital PTZ. Adjustable 129-55° diagonal, 94-43° horizontal, and 67-33° vertical field of view.
Full IR Night Vision
Infrared illumination covers the entire 100-foot range across all four sensors with full field-of-view coverage for 24/7 surveillance in any lighting condition.
NDAA & TAA Compliant
Approved for government and federal facilities. SOC 2 certified with AES-256 encryption and TLS 1.2 encrypted video streams. CE/LVD, FCC, UL 62368-1 compliant.
Sensor Network Compatible
Integrates with the Rhombus Sensor Network — add audio sensors, environmental monitors, motion detectors, and door sensors all managed from one unified console.
Extreme Conditions
Operates in temperatures from -30°C to 55°C (-22°F to 131°F) with 90% humidity tolerance. IP66 weatherproof and IK10 impact resistance for harsh environments.
R600 Full Specifications
Everything you need to know, at a glance.
Imaging
Field of View
Network
Hardware
What's in the Box
Storage options: 1TB (40 days retention) or 2TB (90 days retention) with optional cloud archiving.
Installed by Unió Digital
As a Rhombus Certified Partner, Unió Digital handles everything from site survey to ongoing support.
Headquartered in Tucson, AZ — serving clients nationwide
Ready to See the R600 in Action?
Get a free site assessment and see how the R600 multi-sensor can simplify your security deployment.
